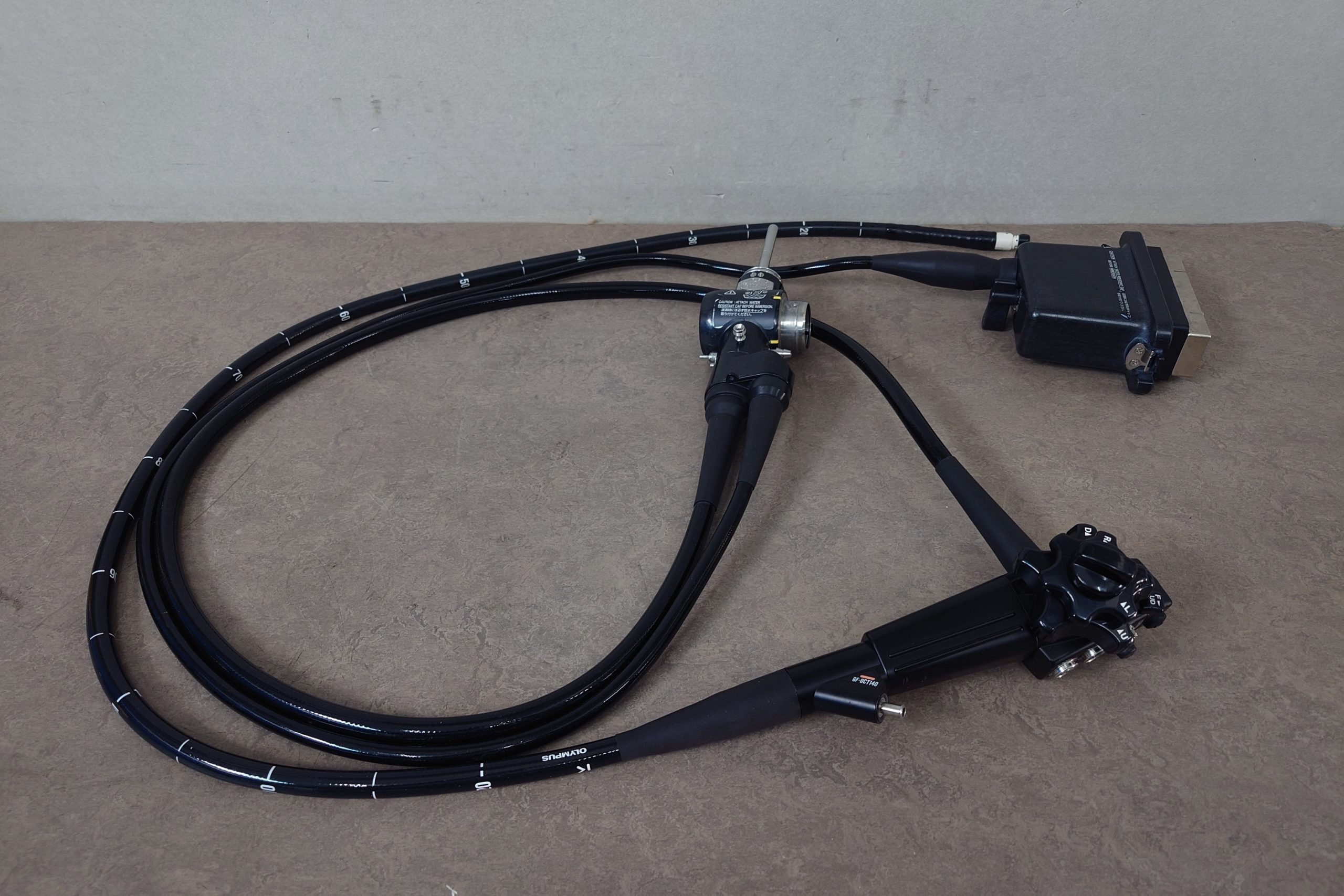

Olympus GF-UCT140-AL5

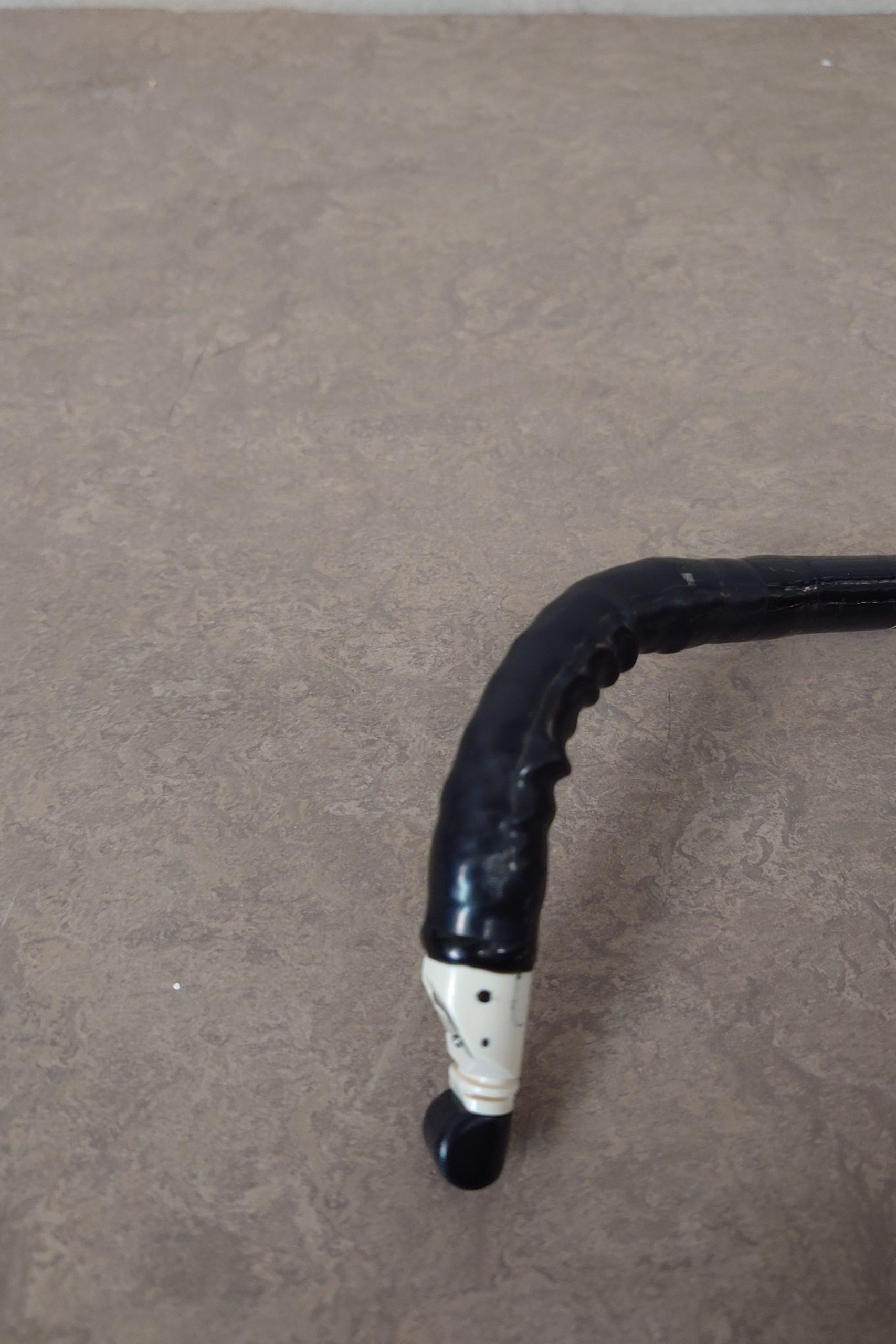

Offering a large working channel, the UCT140–AL5 is ideal for all kind of therapeutic applications in and around the digestive tract, Endoscopic functions Optical system Field of view 100° Direction of view 55° forward oblique Depth of field 3 to 100 mm Insertion tube Distal end outer diameter Ø14.6 mm Insertion tube outer diameter Ø12.6 mm Working length 1,250 mm Instrument channel Channel inner diameter Ø3.7 mm Minimum visible distance 6 mm Bending section Angulation range UP 130°, DOWN, 90°, RIGHT 90°, LEFT 90° Total length 1,575 mm Ultrasonic functions Display mode B-mode, M-mode, D-mode, Flow-mode, Powerflow-mode Scanning method Electrical curved linear array Scanning direction Parallel to the insertion direction Frequency 5, 6, 7.5, 10MHz Focusing Point Maximum 4 focusing points are available (between F1 to F16) Scanning range 180° Contacting method Ballon method Sterille de-aerated water immersion method
